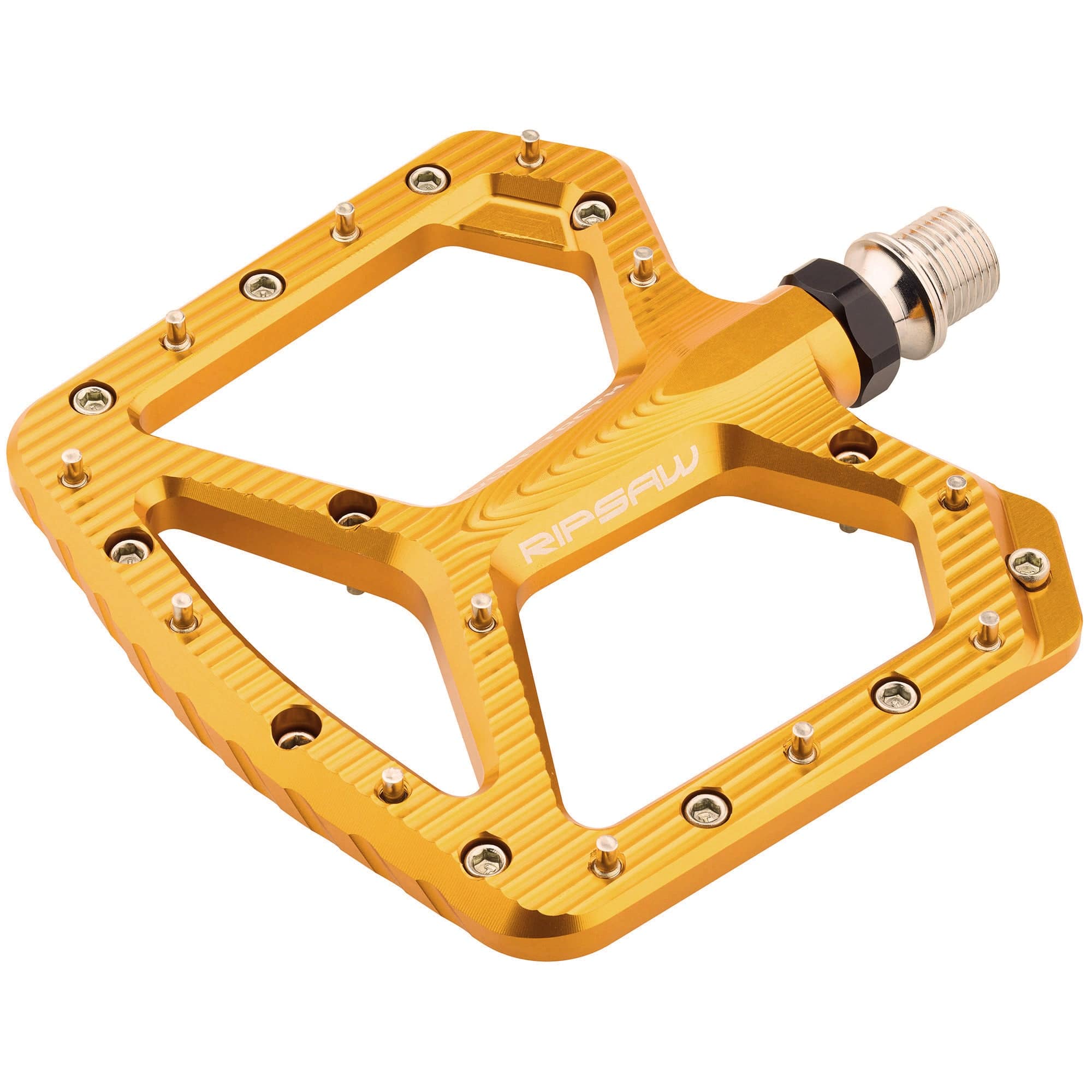

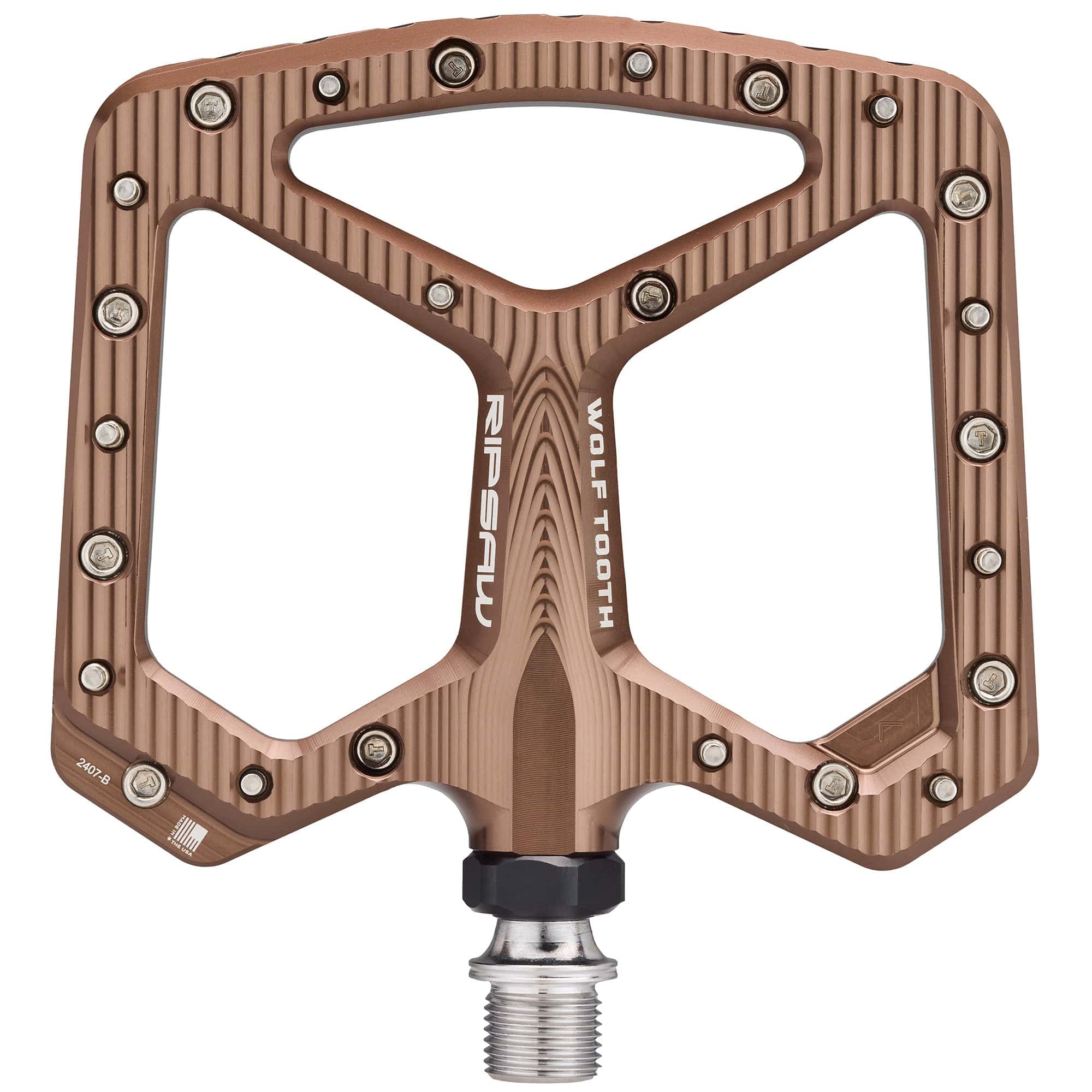

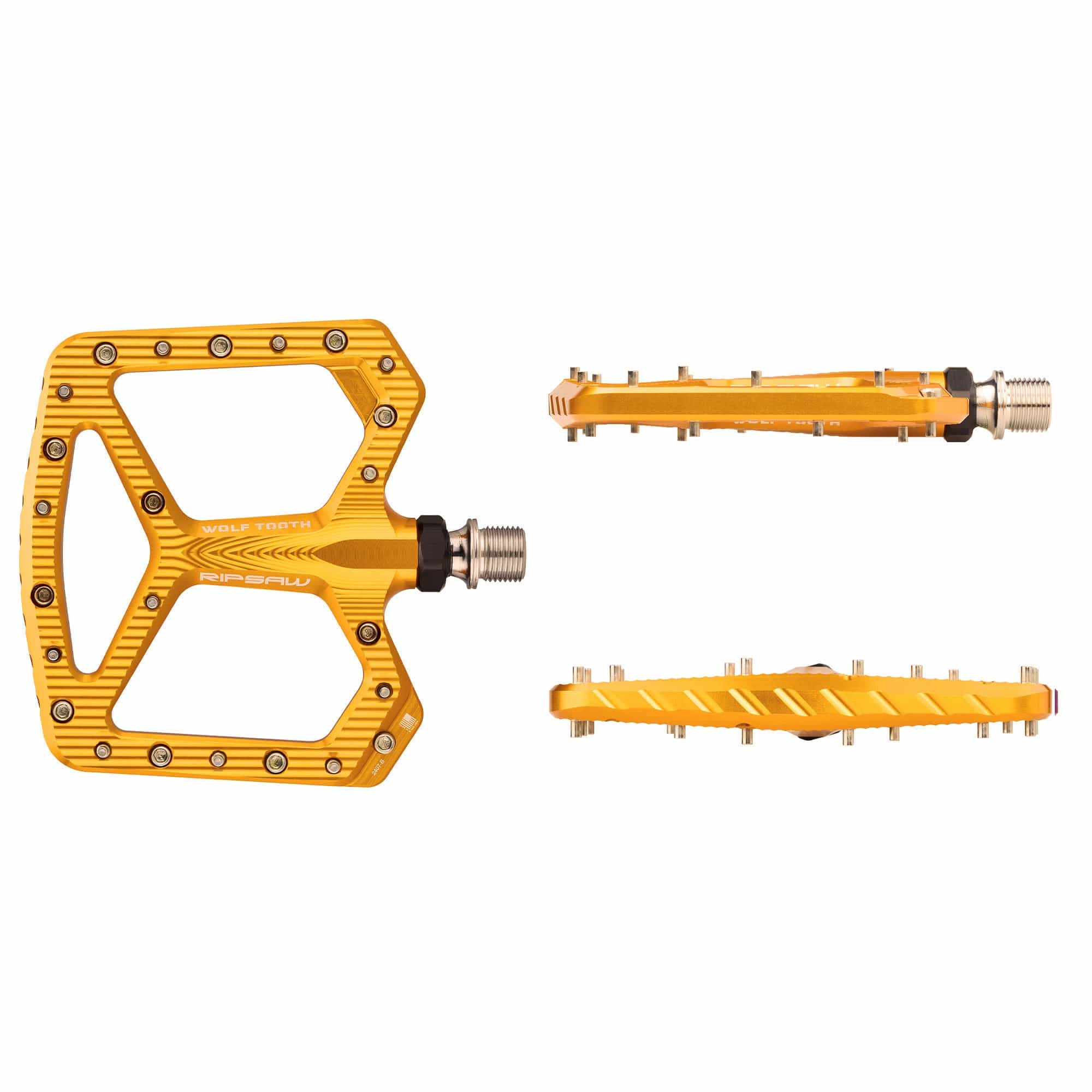

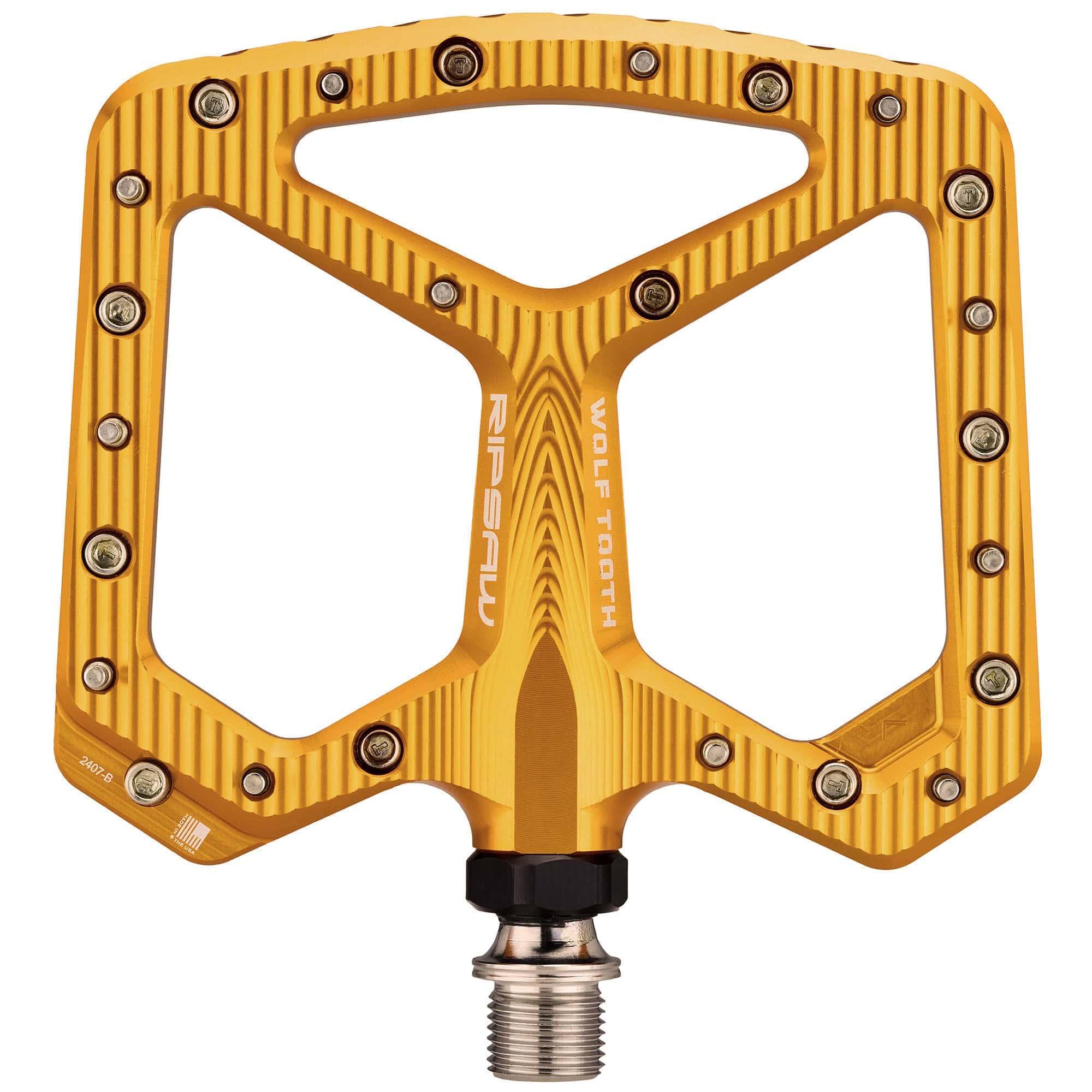

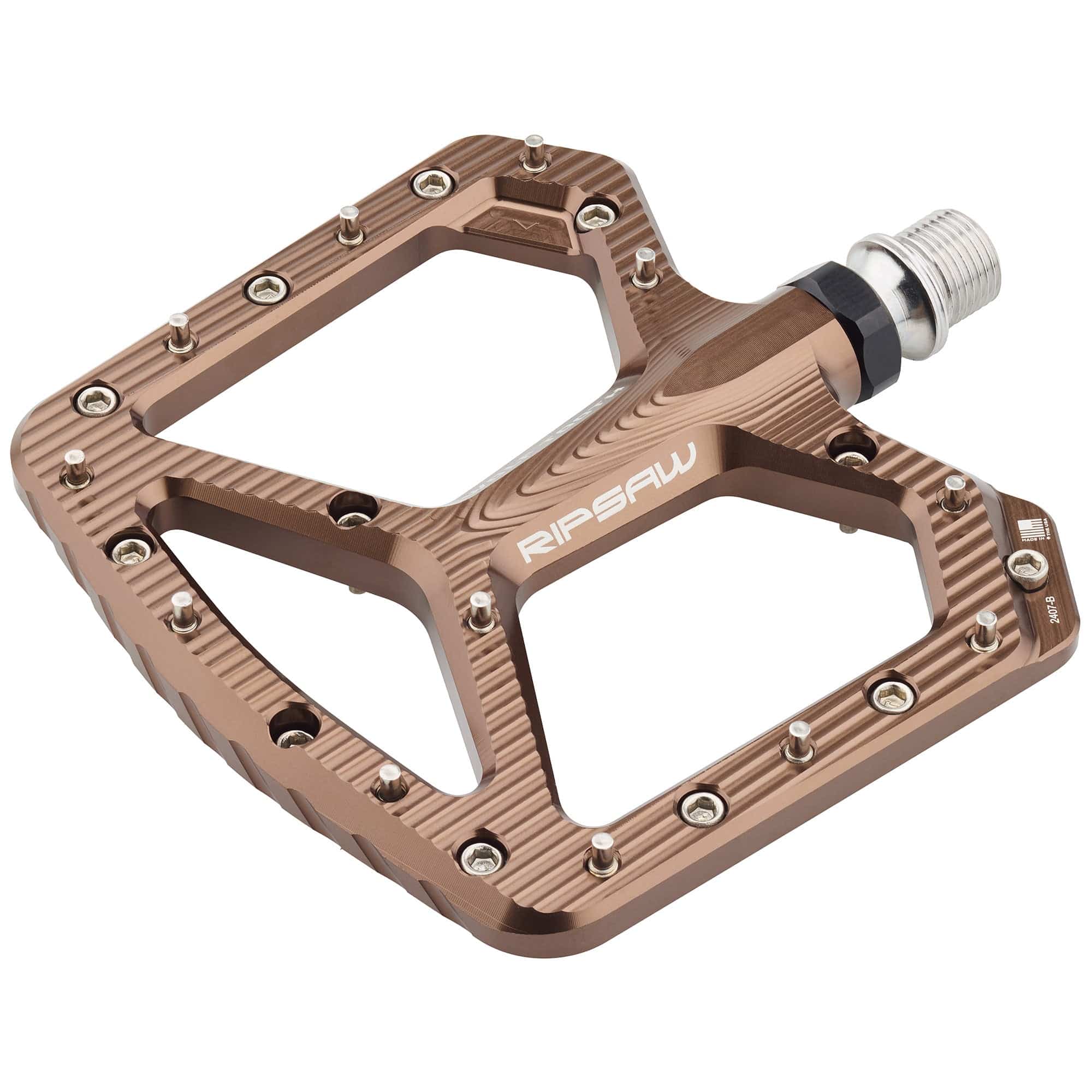

Ripsaw Aluminum Pedals

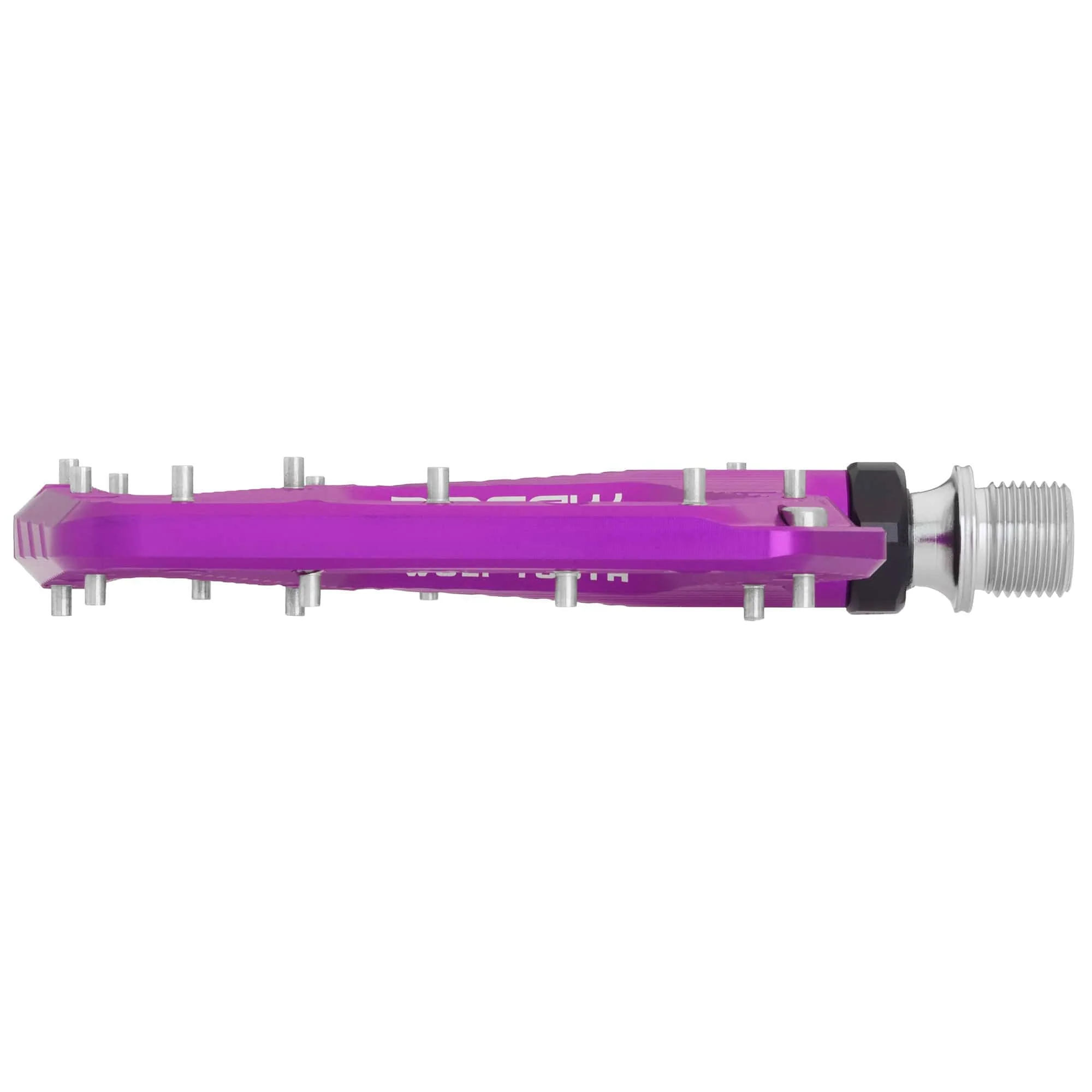

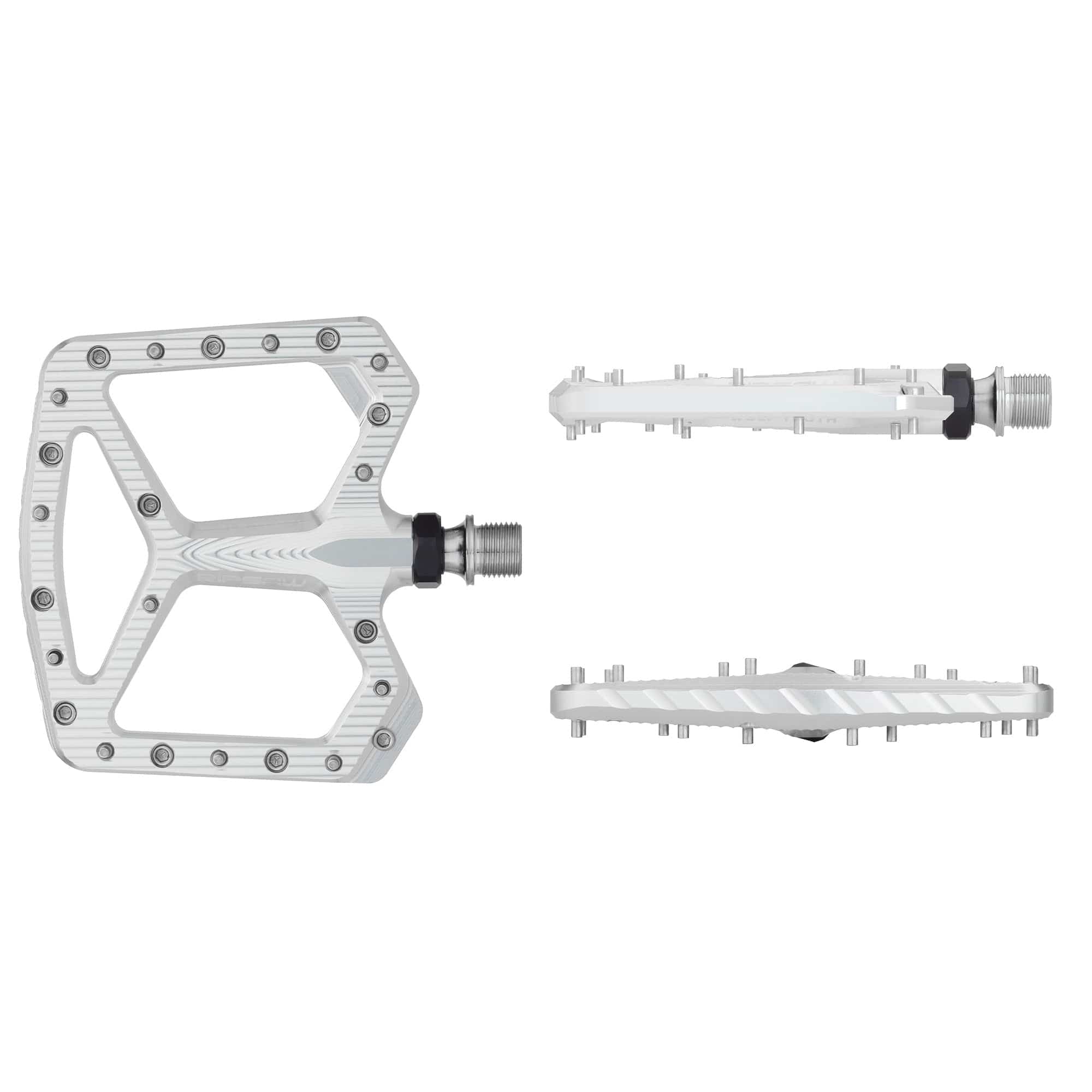

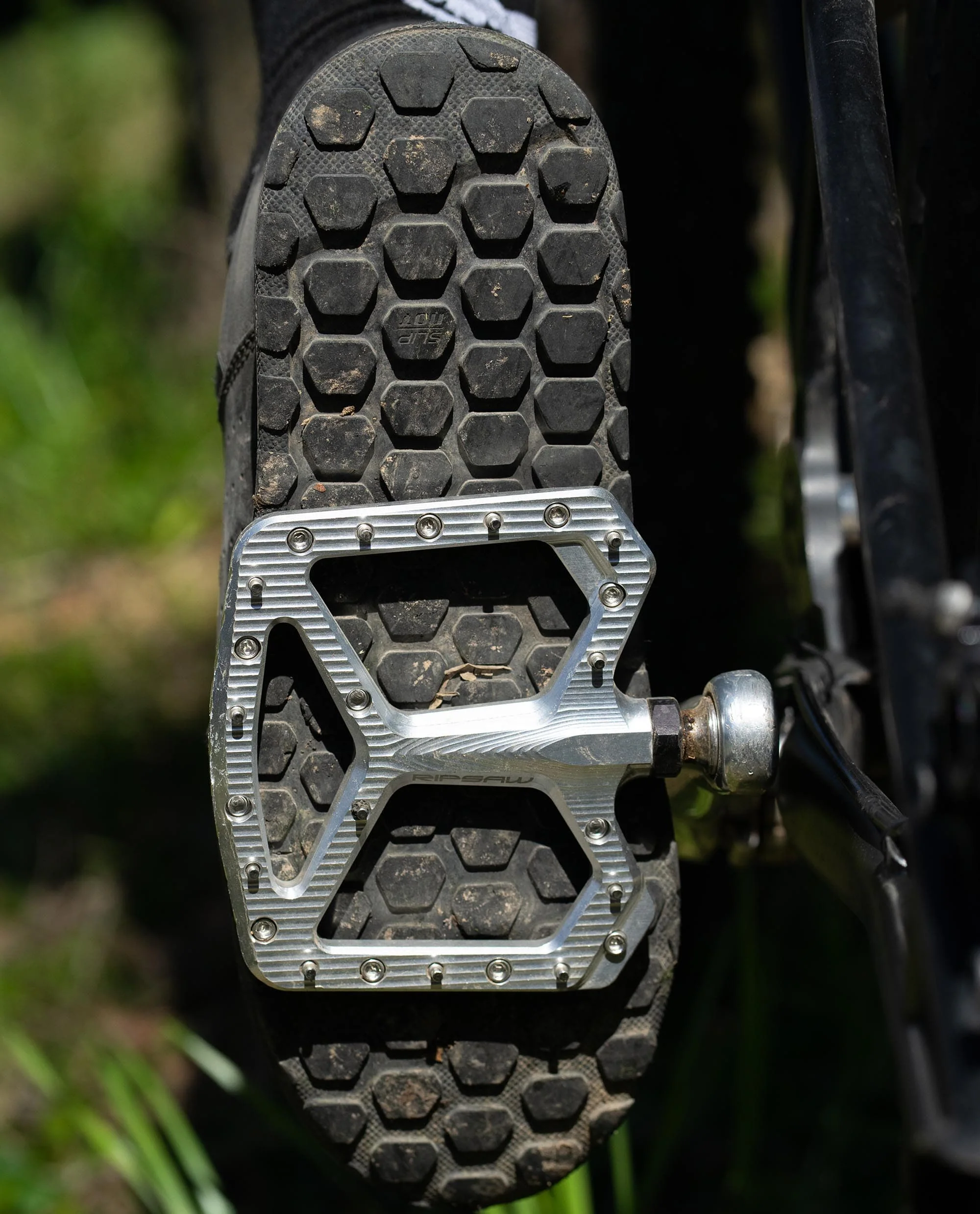

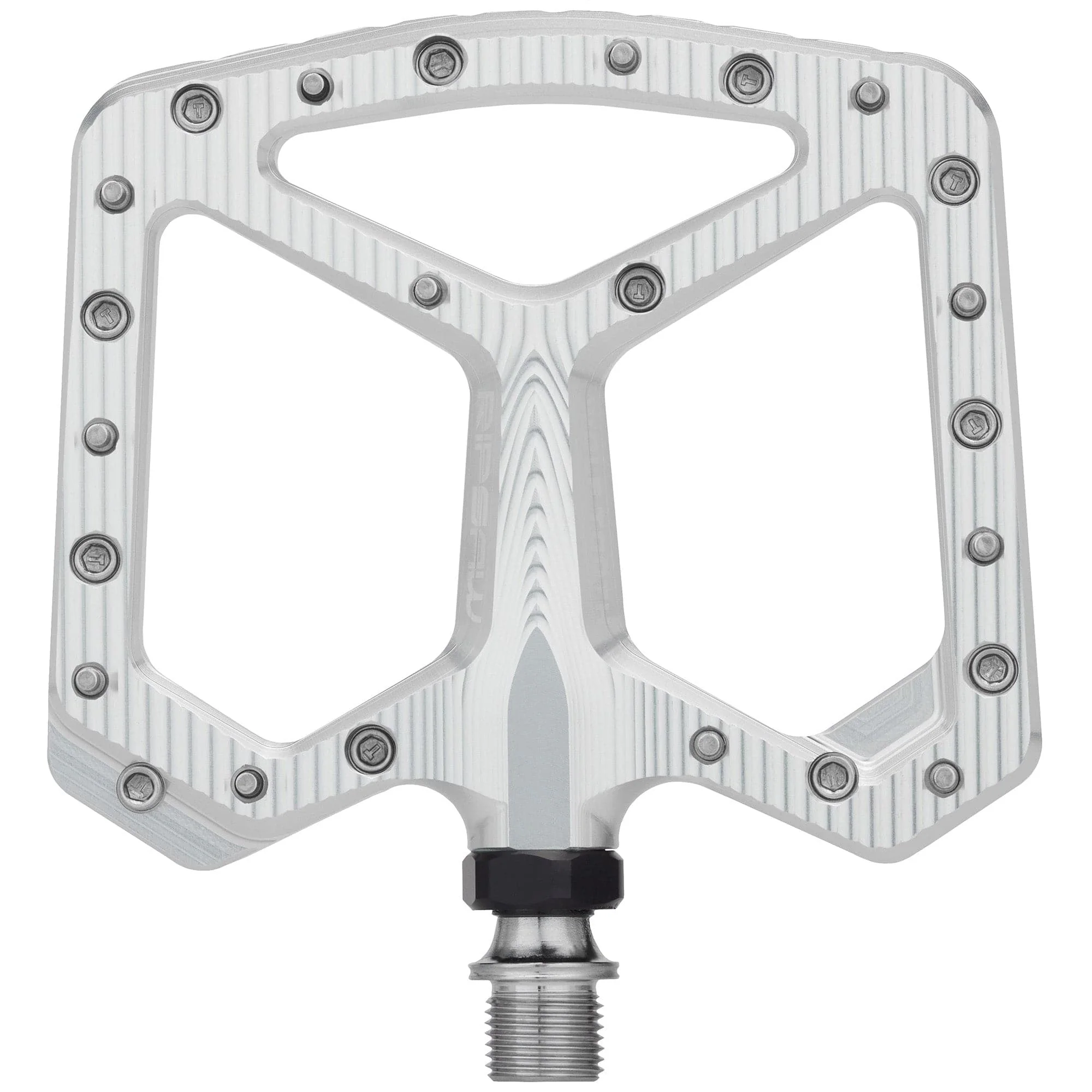

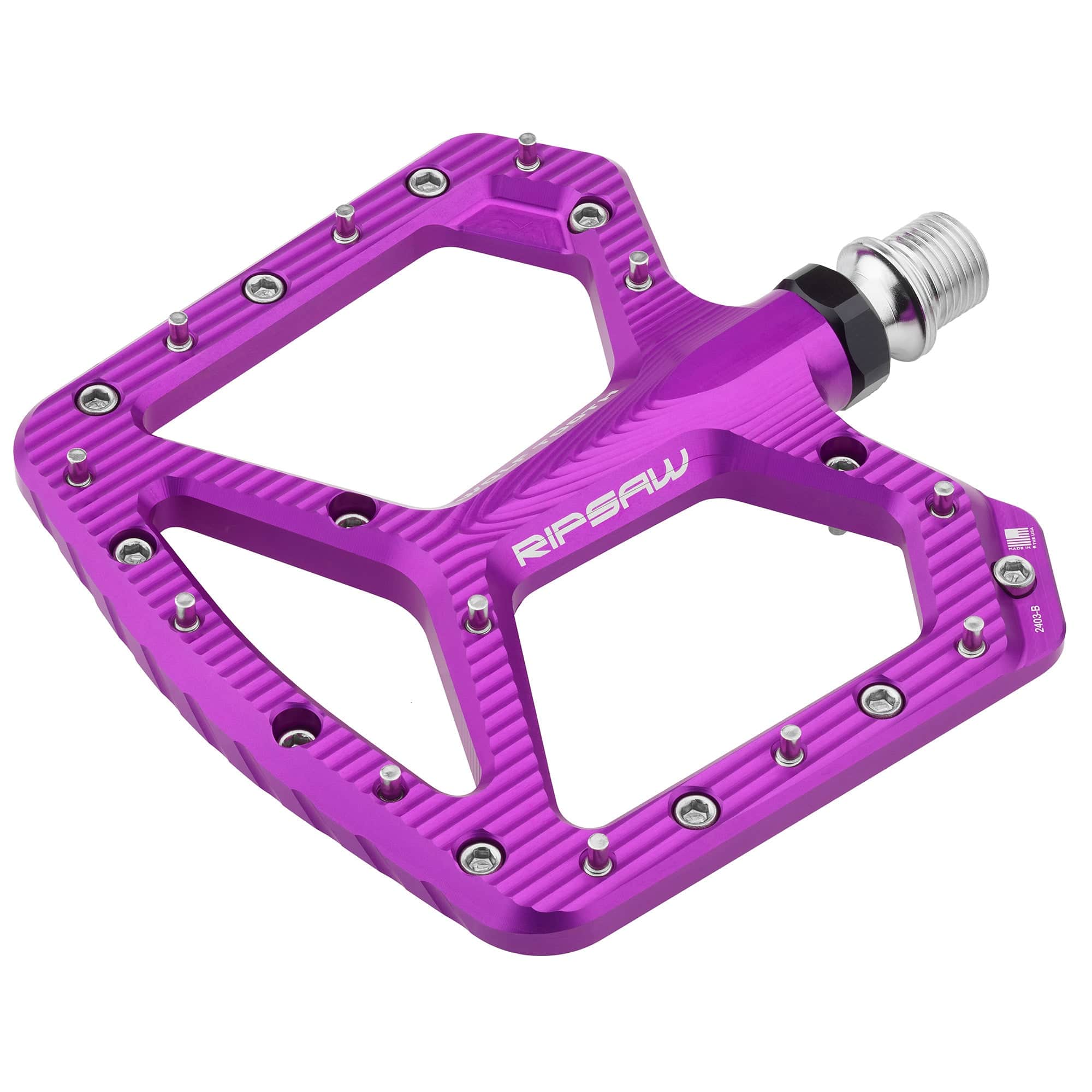

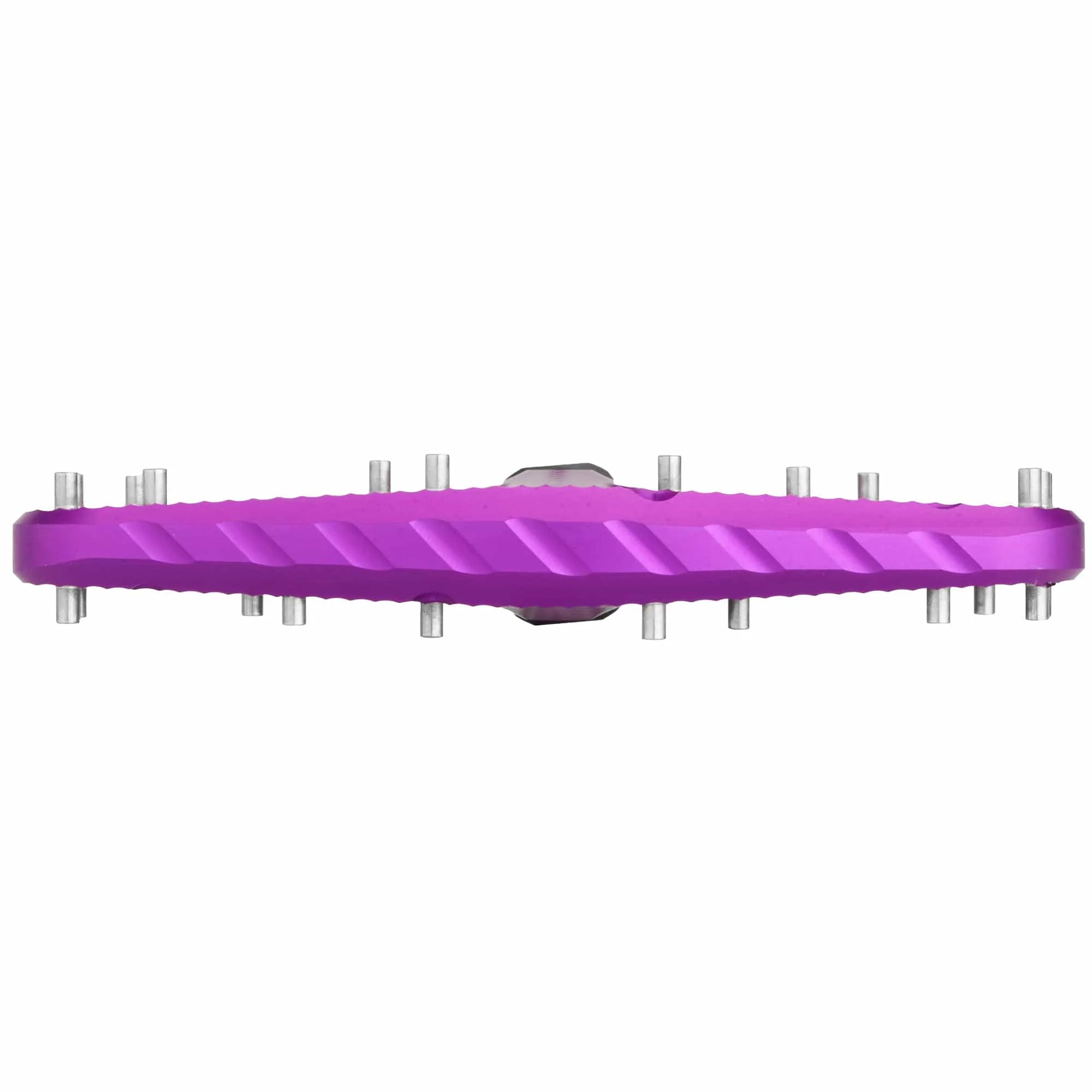

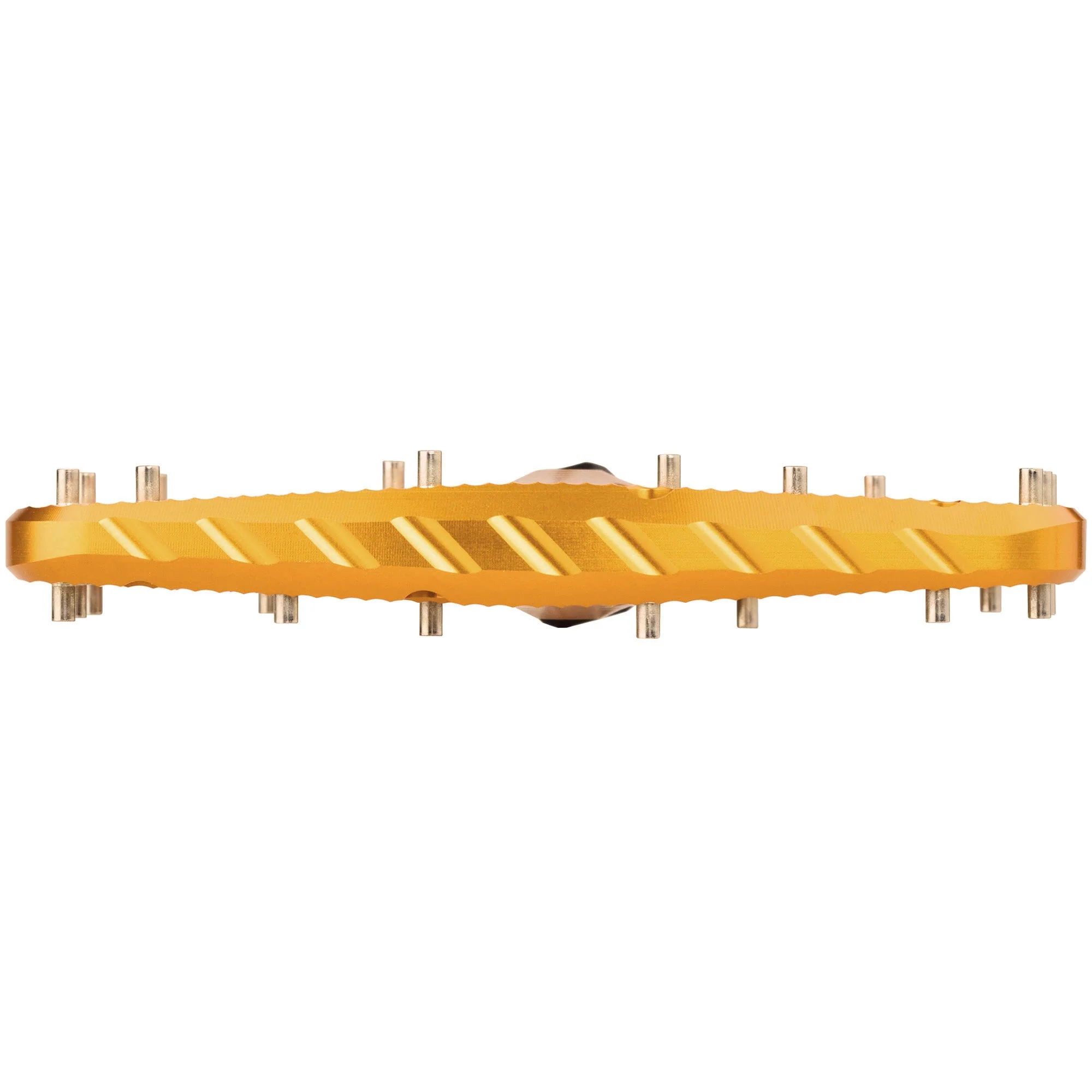

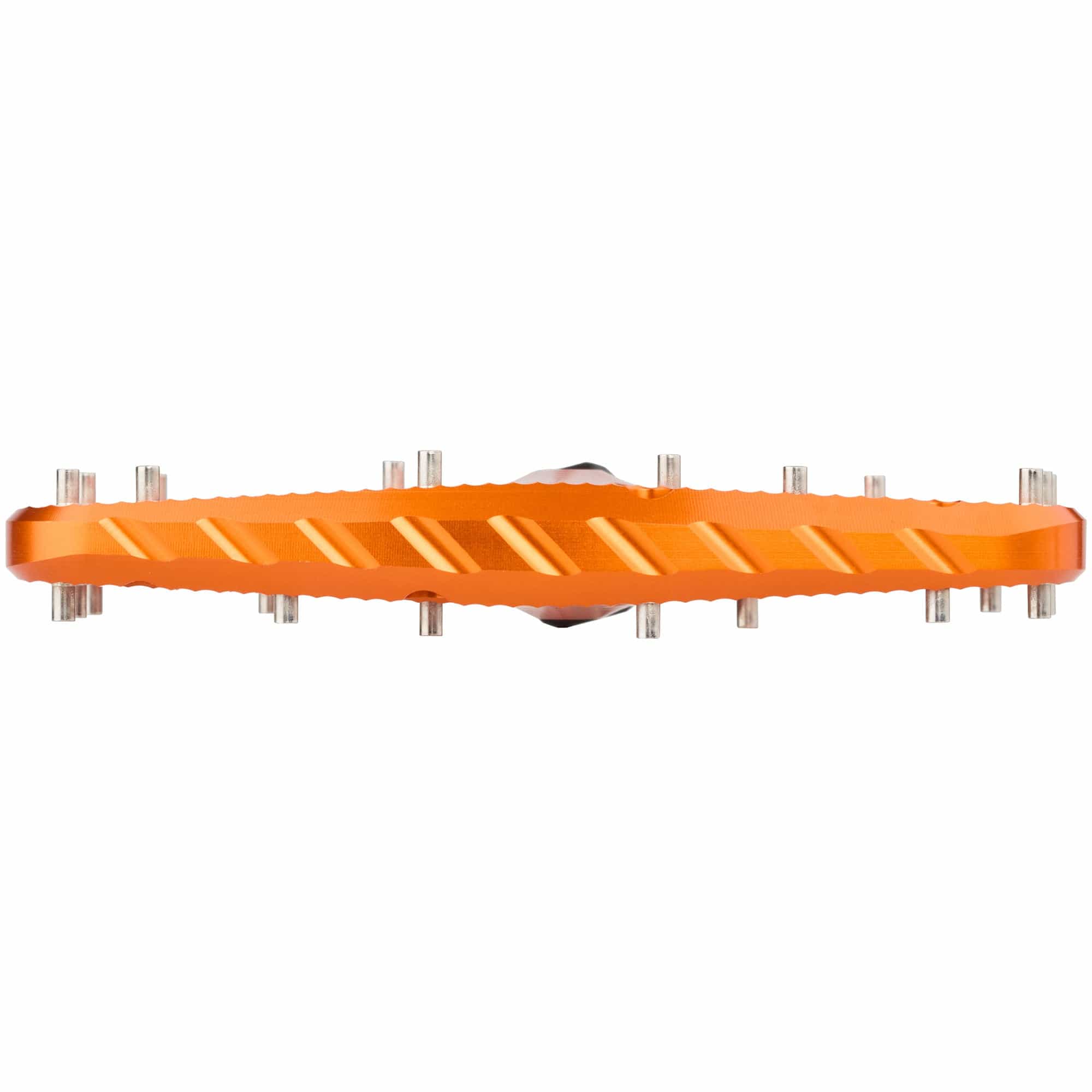

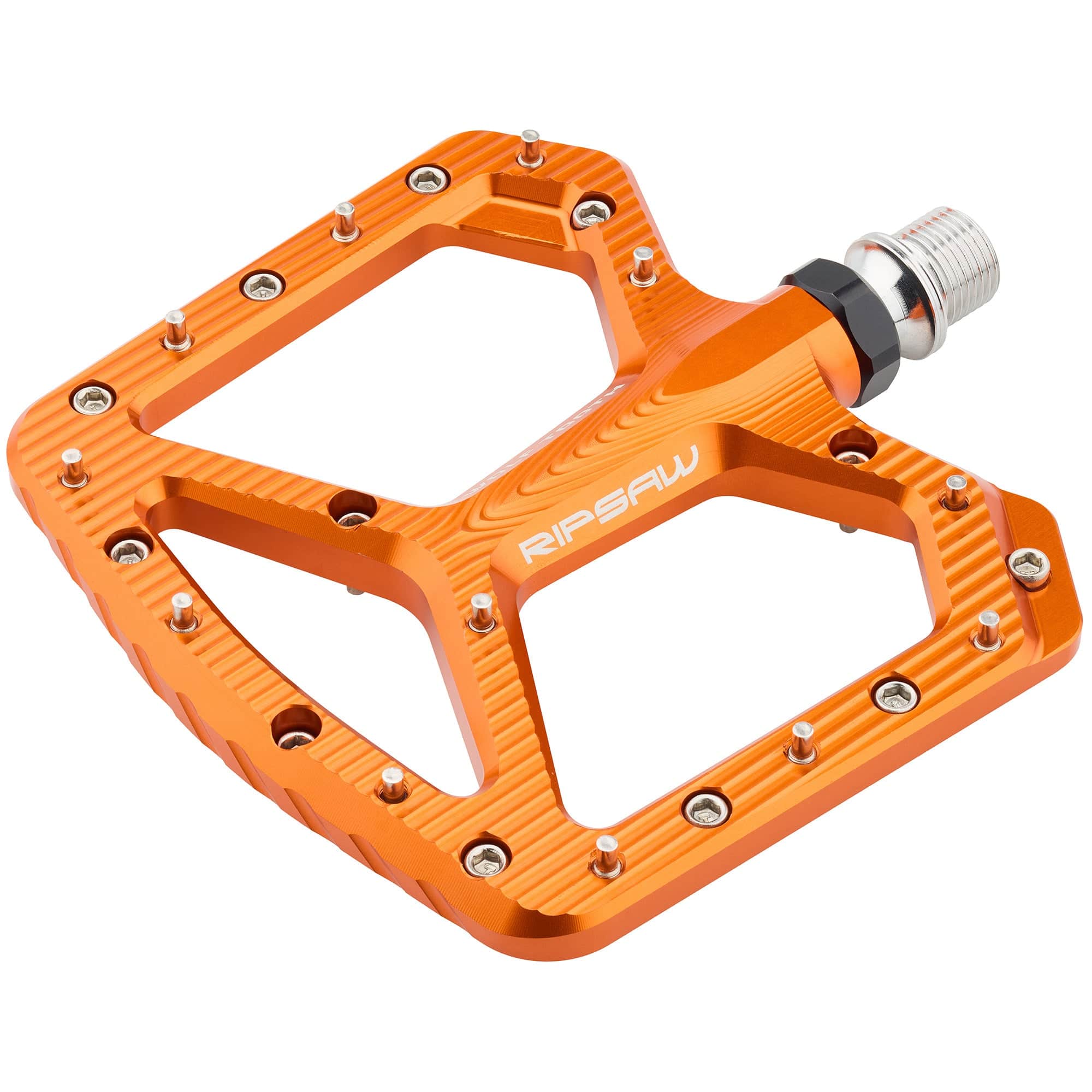

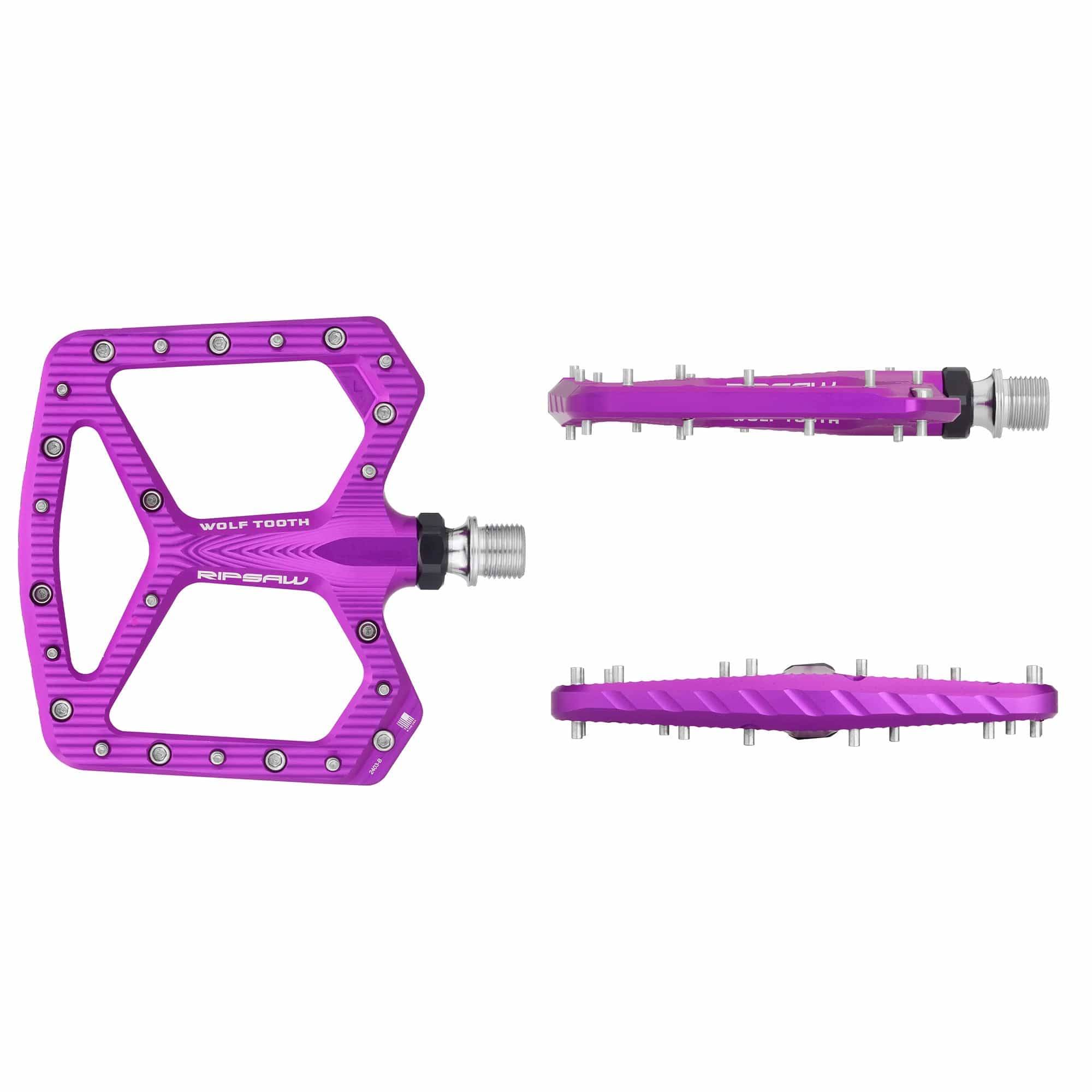

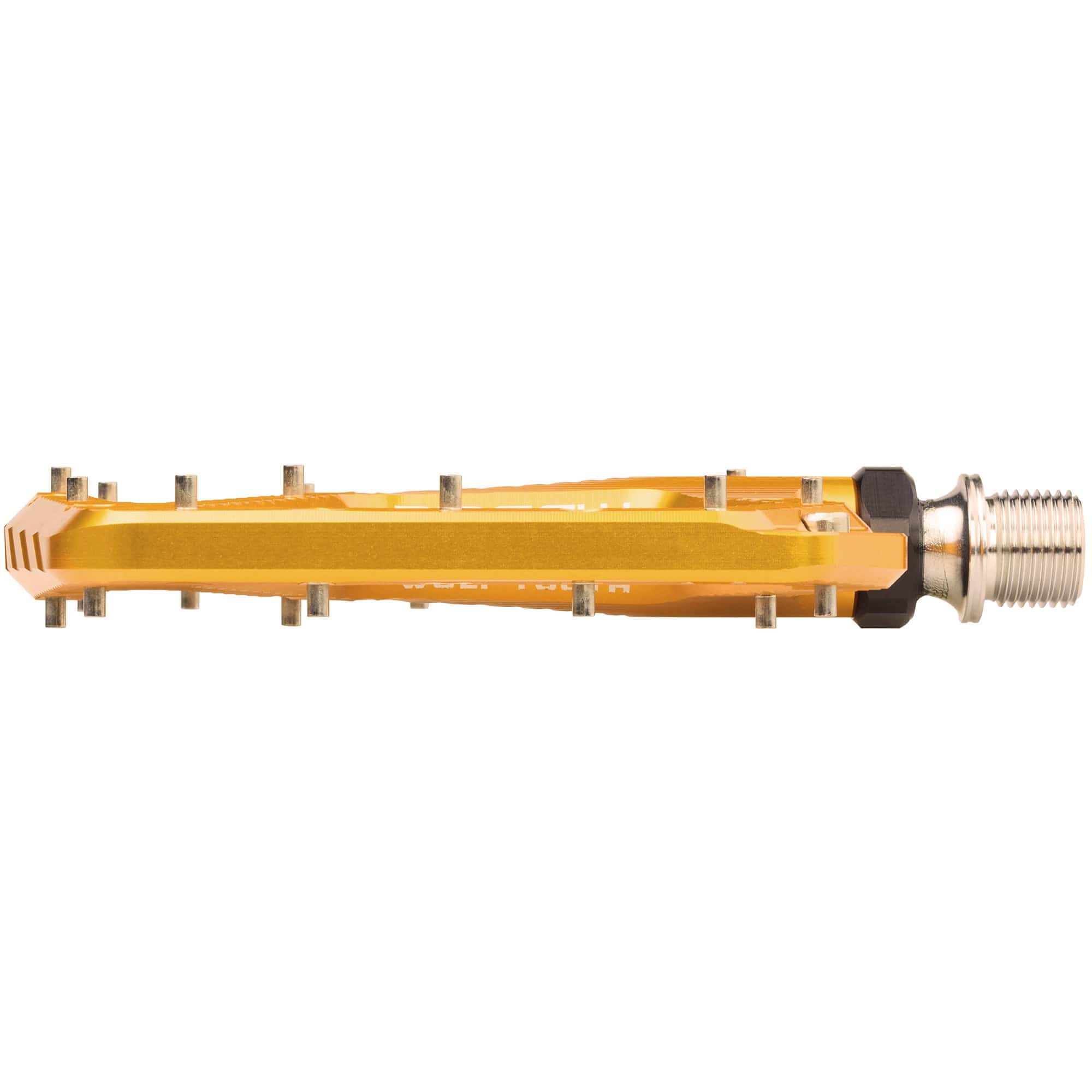

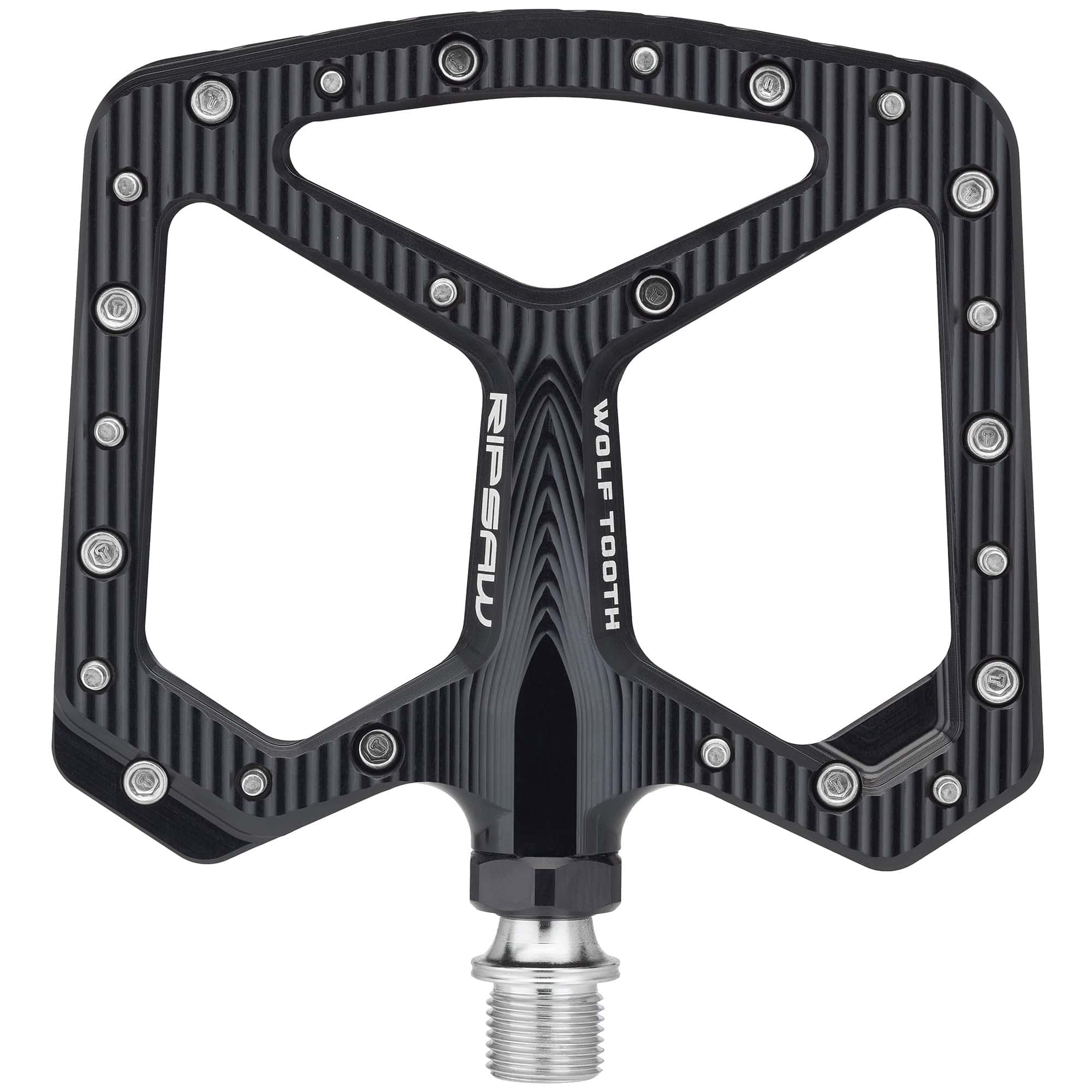

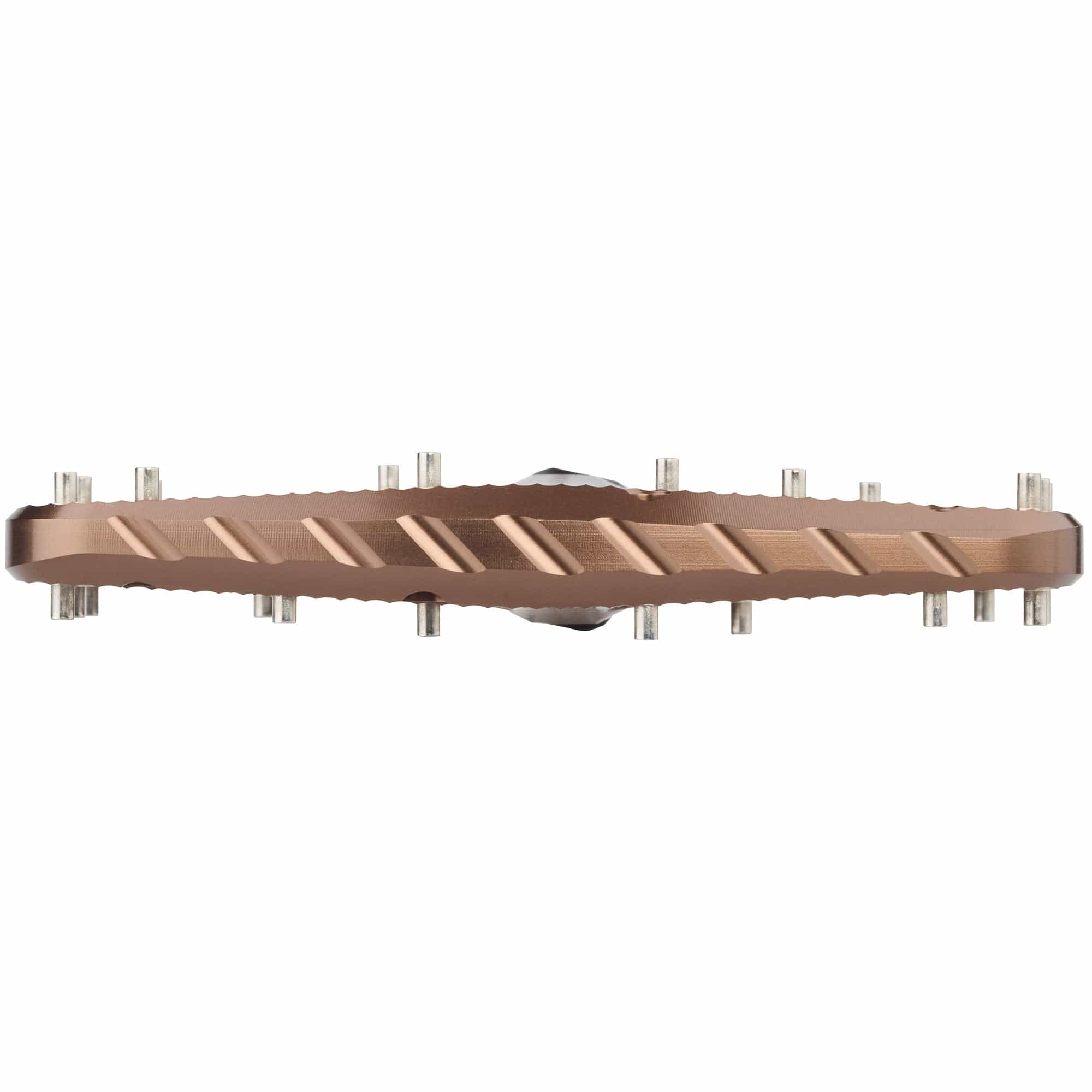

The new Ripsaw Aluminum Pedals feature a slim, lightweight design with a slight convex profile. The large, asymmetric aluminum platform provides strong foot support for all-mountain riding, while the minimal convex profile is just 7mm thick at the leading edge. These are designed for cyclists who prefer a mid-foot riding position, where the ball of the foot is in front of the pedal spindle and the arch of the foot aligns with the convex arch in the center of the pedal. Inside Ripsaw Aluminum Pedals is a 17-4 stainless steel axle, three sealed cartridge bearings, and one igus bushing with a custom radial seal to protect internal components from trail debris and dirt.

• One size: 118mm long x 102mm wide
• Twelve stainless steel, rear-loading grip pins on each side
• Six extra 4.5mm grip pins included

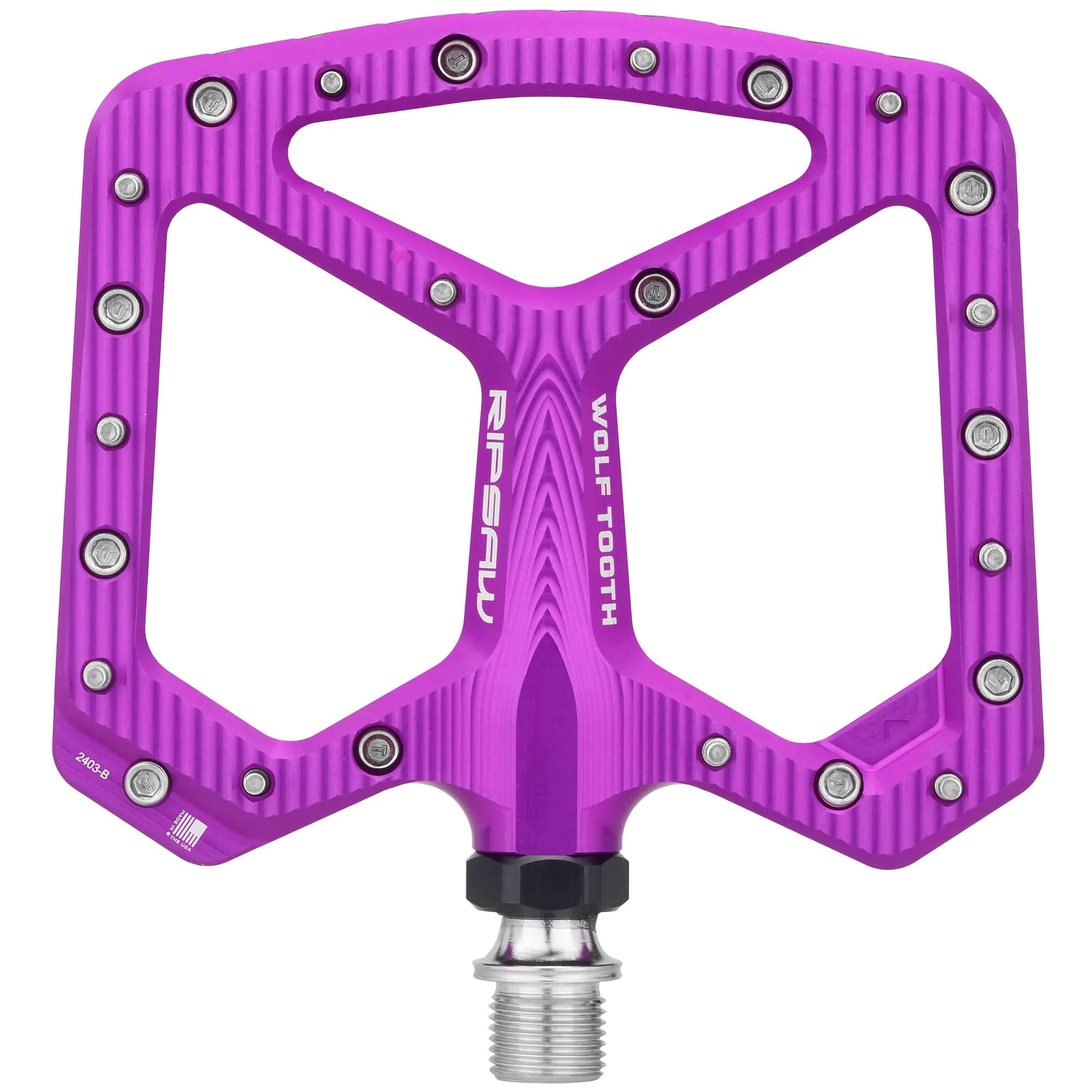

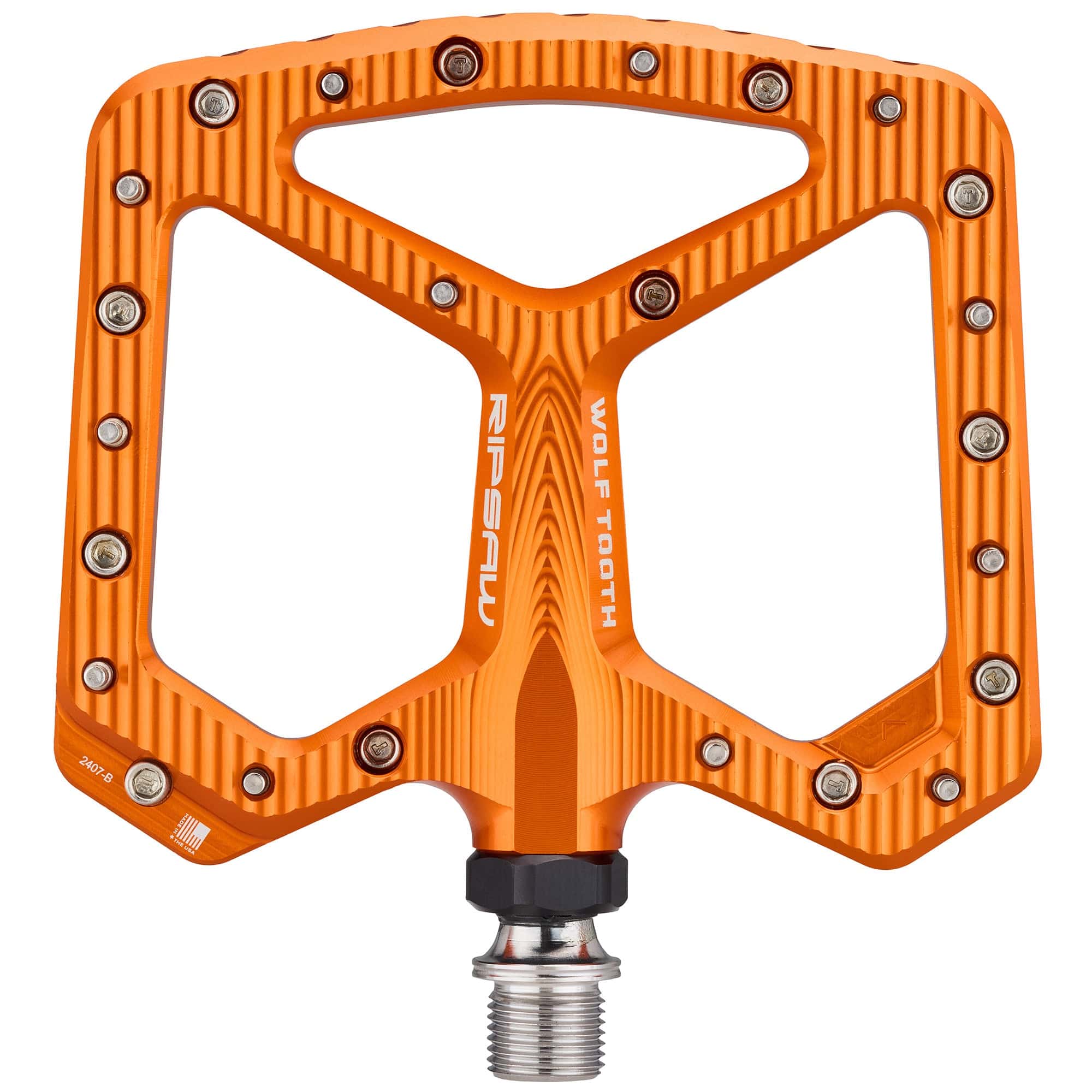

• Five colors: Black, Espresso, Orange, Raw Silver, Ultraviolet Purple
• Replacement parts and service guides available via Wolf Tooth Right to Repair
• Five-year warranty
• Exceeds all ISO safety standards
• Machined and assembled at Wolf Tooth in Minnesota, USA

Recommended

• Apply WT-G Precision Bike Grease to the pedal threads before installing pedals on crankarms.
• Pins can be removed for desired grip by using a 3mm hex tool.
• Includes 6 extra grip pins. More pins are available on the replacement parts page. See installation instructions for recommendations on installing pins.

Compatibility

• Fits all standard cranks with 9/16-20 tpi right- and left-hand threads – some kid’s bikes and vintage bikes may have smaller incompatible threads.



Related Products



Ripsaw Pedals Replacement Parts

Pedal Pins

WT-G Grease

Waveform Aluminum Pedals

Tech Specs

User Manual and Service Guide

Warranty

Ripsaw Pedal Replacement Parts

Ripsaw Pedals Factory Service

Weight: 380g
Pin Height: 4.5mm
Material: Pedal Body: 6061-T6 Aluminum; Axle: 17-4 PH Stainless Steel; Pins: 304 Stainless Steel

Made in the USA
